Product Details:
Payment & Shipping Terms:
|
| Product Name: | American Gas Burner | Material: | Stainless Steel |
|---|---|---|---|
| Burner: | , 4pcs, 6pcs, 10pcs | Type: | Floor Standing |
| Model: | S24, S36, S60, S36-G12, S36-G24, S60-24, S60-GS24 | Power Source: | Gas LPG / LNG |
| Highlight: | Commercial Gas Fryers,electric warming tray |
||

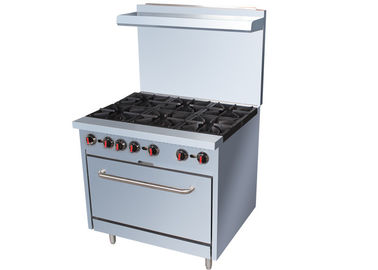

Commercial Restaurant Cooking Equipment 4 / 6 / 10 Pcs Outdoor Gas Burner With Griddle
Features
1. Over temperature secure protection device.
2. Devices are preset to city gas, NG or LPG.
3. Energy saving 20-30% more than traditionial one.
- Fully MIG welded frame for stability
- Stainless steel front, back-riser
- 6" stainless steel adjustable heavy duty legs
- Two open top burners, each 30,000 BTU/hr
- Coved pilot burner cover to prevent clogging from spillage
- Stainless steel pilot for durability
- Heavy duty cast grates,12" x 12“(30*30cm) in size, easy to be removed
- Pull out crumb tray with rounded edges to prevent heat transfer
- 31,000 BTU/hr. U-shape burner for bottom oven
- With 20000BTU/hr burners (2 pcs) for griddle
- Full size sheet pans fit side-to-side or front-to-back.
- Oven thermostat adjusts from 250°F to 550°F
- Two oven racks and four rack positions
- 24” griddle plate , ¾” thickness, U shape burner
- Optional with castors
Specification:
| Model | Dimension | Burner | Burner power | Oven power |
| S24 | 609x830x911+621 | 4pcs | 28000btu | 28000btu |
| S36 | 915x830x911+621 | 6pcs | 28000btu | 28000btu |
| S60 | 1524x830x911+621 | 10pcs | 28000btu | 28000btu |
| Model | Burner | Burner power | Griddle | Griddle power | Oven Dim. | Oven Power | Dimension(mm) |

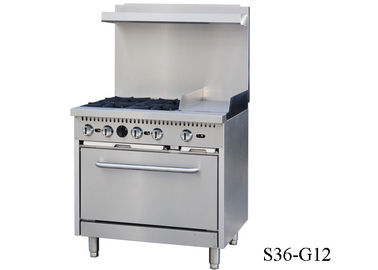

| S36-G12 | 4 | 30000*4btu | 12'' | 30000btu | 26.8''*25.8''*13.8'' | 30000btu | 915*830*911+621 |
| S36-G24 | 2 | 30000*2btu | 24'' | 60000btu | 26.8''*25.8''*13.8'' | 30000btu | 915*830*911+621 |
| S60-24 | 6 | 30000*6btu | 24'' | 60000btu | 26.8''*25.8''*13.8''*2 | 30000btu*2 | 1524x830x911+621 |

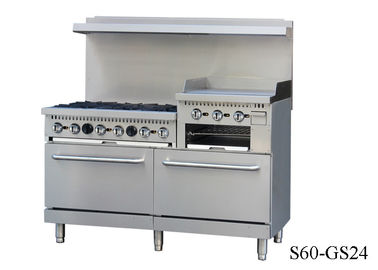

| S60-GS24 | 6 | 30000*6btu | 24'' | 45000btu | 26.8''*25.8''*13.8''*2 | 30000btu*2 | 1524x830x911+621 |
Model:S36-G24
