Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cooking Line - Gas Burner 700& 900 Range | Material: | Stainless Steel |
|---|---|---|---|
| Burner Quantity: | 4 Or 6 | Burner Type: | American |
| Burner Power: | 7.8kw | Model No.: | (J)ZH-RQ-4, (J)ZH-TQ-4, (J)ZH-RA-4, (J)ZH-RQ-6, (J)ZH-TQ-6, (J)ZH-RA-6, (J)ZH-RJ-4, (J)ZH-TJ-4 |
| Type: | Free Standing | ||
| High Light: | Burner Gas Range,electric range cookers |
||

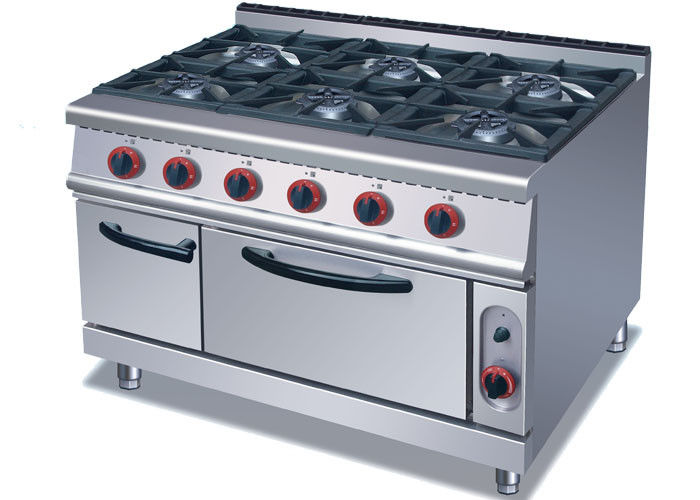

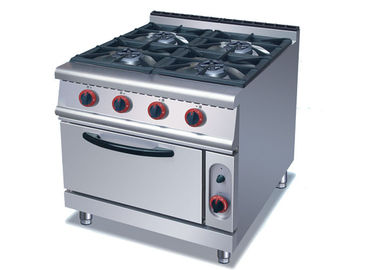

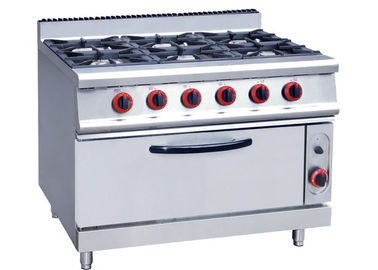

Commercial Cooking Lines , Free Standing 4 / 6 Amercian Burners Gas Range With Oven
Features:
- The housing is made of stainless steel and the worktop is 1.5mm thick thickness to ensure strength.
- Core accessories(including hot plates and thermostats) made in Germany are adopted to ensure stable and reliable performance.
- The cooker has 3-position selector switches to adjust and regulate heating.
- One switch is provided for each burner.
- It is equipped with safety thermostats to ensure safety.
- The 20cm stainless steel can be adjusted; adjustable range: plus or minus 25cm.
- The electric product series are insured by the People’s insurance Company(Group) of China.
- The power output of the burner can reach 7kw.
- Annular flame ensures high efficiency.
- The burners are manufactured through precision casting to make sure that flames are stable and endurable.
- The size of the flames of the burner is adjustable.
- Stretch forming cooking surface, easy to clean.
- Equipped with heavy hobs and extra long handles, this stove can be used for frying, stewing and roasting with very small cookers.
- It is equipped with a flame failure device and a flame size control device and it is easy to operate.
- The oven offers temperature control and flame failure protection functions to achieve even temperature distribution. The highest temperature can reach 320℃.
Option:
- 6 burner with big oven
- s/steel handle
- zinc alloy knob
- s/steel chimney
Specifications:
4 Burners
| Model | Dimension | Power(BTU/hr) | Power(KW) | Base |
| ZH-RQ-4 | 800x900x850+60 | 125560 | gas oven | |
| JZH-RQ-4 | 700x700x850+60 | 125560 | gas oven | |
| ZH-TQ-4 | 800x900x850+60 | 106000 | 380v/4.8kw | elec oven |
| JZH-TQ-4 | 700x700x850+60 | 106000 | 380v/4.8kw | elec oven |
| ZH-RA-4 | 800x900x850+60 | 48592 | cabinet | |
| JZH-RA-4 | 700x700x850+60 | 48592 | cabinet |
6 Burners
| Model | Dimension | Power(BTU/hr) | Power(KW) | Base |
| ZH-RQ-6 | 1200x900x850+60 | 178790 | gas oven | |
| JZH-RQ-6 | 1050x700x850+60 | 178790 | gas oven | |
| ZH-TQ-6 | 1200x900x850+60 | 159000 | 380v/4.8kw | elec oven |
| JZH-TQ-6 | 1050x700x850+60 | 159000 | 380v/4.8kw | elec oven |
| ZH-RA-6 | 1200x900x850+60 | 72889 | cabinet | |
| JZH-RA-6 | 1050x700x850+60 | 72889 | cabinet |
4 burners with griddle & oven
| Model | Dimension | Power(BTU/hr) | Power(KW) | Base |
| ZH-RJ-4 | 1200x900x850+60 | 101291 | / | gas oven |
| ZH-TJ-4 | 1200x900x850+60 | / | 380v/23.5kw | elec oven |
Burner photo:
Black & Red knob
