Product Name: | Gas/Elec. Deck Oven | Power Source: | Elec. / Gas |
---|---|---|---|
Capacity: | 1deck/2tray, 2deck/4tray, 3deck/6tray, 1deck/3tray, 2deck/6tray, 3deck/9tray | Tray Size: | 400*600mm; 460*720mm |
Model: | NFD-20F, NFD-30F, NFD-40F, NFD-S-60F, NFD-90F, NFD-40FF. NFR-20H, NFR-30H, NFR-40H, NFR-S-60H, NFR-60H, NFR-90H, NFR-40HF | ||
High Light: | commercial bakery oven,commercial bread ovens |
Detachable Double Deck Bread Oven Gas Commercial Cake Oven For Luxious
- The performance of this Luxurious deck oven is quite beautiful and impressive. It can be used in shopping mall, supermarket and bakery shops.
- It is designed to baking all kinds of food, such as cakes, moon cakes, bread, green been cake, crisply cakes, etc. the food made by our luxurious deck oven has good structure and is not easy to deform.
- During baking, the water loss of the food is less, with the uniform and bright color and luster, you can enjoy a perfect baking effect.
- The main accessories for electric appliance are imported to assure the machine works durable.
- The stainless steel we select is first class, it will not transfer heat or deform even under the high temperature.
- It has two types of control panel
1: manual control panel
2: the temperature controller is made in Taiwan, it can accurately control the temperature. Additionally, it comes with a timer for each deck.
3: this oven can be controlled through microcomputer digital control panel. With this design, the temperature of this oven chamber can be accurately controller.
- With the special design for the oven chamber, the temperature in the chamber can reach the same level at the same time. The uniform distribution of the temperature brings uniform color and luster of the baked food.
- The oven chamber of this range is larger than other range, you can bake 12 trays at same time for the 3 deck oven since it is available with tray size 460*720mm.
- For other models, they are available for 400*600mm tray only.
- This oven has good heat insulation, which can help you to save the energy accordingly.
- t has high-quality door seal for good sealing property.
- The thickness of the fibreglass for heat insulation is 135mm, so it has good heat preservation effect and is energy-saving.
- There is cotton insulation between every two decks. So the temperature in one deck will not be affected by other deck.
- The temperature of each deck can be set up separately to bake different food at one time.
- The temperature of the upper heating system and the lower heating system are separately displayed.
- Each deck is removable, so it will be convenient for you to sell or use.
- The cooling fan is designed at the side plate for electric type.
- The densely distributed ventilation hole on the panel can provide good protection to the electronic components. The machine and the electric components have longer service life with this good heat dissipation.
- It designed with stretchable handle to control the exhaust system, the chimney is designed is square shape.
- This deck oven is designed with plastic door handle, it will not transfer heat and got hot or melt compare with stainless steel handle.
- It is designed with square inspection window instead of common elliptic inspection window, so it will be more convenient for the operator to know the baking condition.
Option:
-Steaming function can be added. With this function, the color and luster of the baked food will be better.
- Stone which can provide heat preservation for the bottom of the machine, it is quite suitable to bake pizza.
Specification
Elec. Type:
Model | Voltage(V) | Power(kw) | Capatity | Dimension(mm) | Weight(kg) |

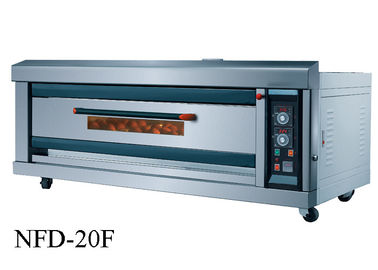

NFD-20F | 380V | 6kw | 1 deck/2tray | 1460x1190x750 | 280 |
NFD-30F | 380V | 9kw | 1 deck/3tray | 1930X1190X750 | 320 |
NFD-40F | 380V | 12kw | 2 deck/4tray | 1460x1190x1670 | 425 |
NFD-S-60F | 380V | 18kw | 2 deck/6tray | 1930X1190X1670 | 525 |

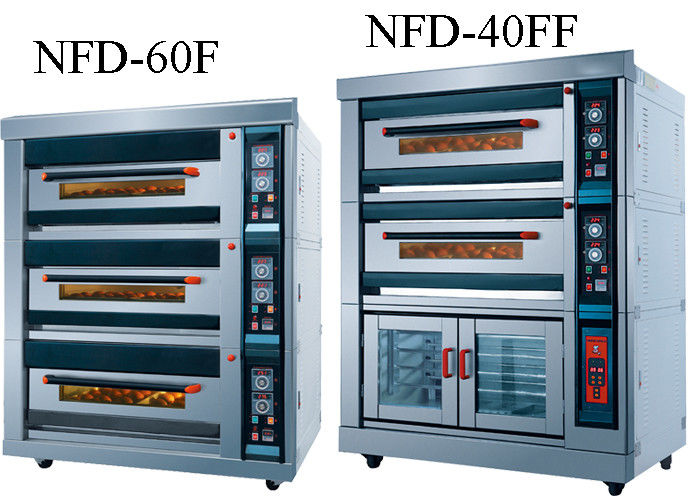

NFD-60F | 380V | 18kw | 3 deck/6tray | 1460x1190x1830 | 610 |
NFD-90F | 380V | 27kw | 3 deck/9tray | 1930x1190x1830 | 788 |
NFD-40FF | 380V | 12+3.5kw | O:4 tray/P:8 tray | 1460x1190x1830 | 538 |
Gas Type:
Model | Voltage(V) | Power(kw) | Capatity | Dimension(mm) | Weight(kg) |

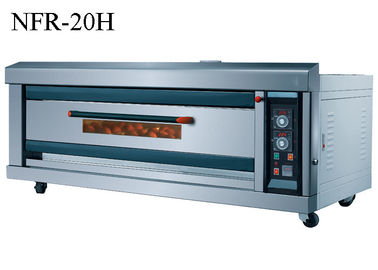

NFR-20H | 220 | 0.1 | 1deck/2tray | 1400x990x730 | 210 |
NRF-30H | 220 | 0.1 | 1deck/3tray | 1820x990x730 | 310 |
NFR-40H | 220 | 0.2 | 2 deck/4tray | 1400x990x1450 | 420 |
NFR-S-60H | 220 | 0.2 | 2 deck/6tray | 1930X1190X1670 | 525 |
NFR-60H | 220 | 0.3 | 3 deck/6tray | 1400x990x1830 | 603 |

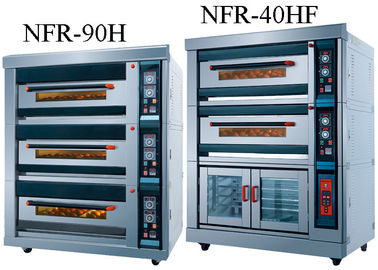

NFR-90H | 220 | 0.3 | 3 deck/9tray | 1940x1130x1830 | 785 |
NFR-40HF | 220 | 0.2+3.5 | O:4 tray/P:8tray | 1400x990x1980 | 580 |
Detailed photos:
